Peptide-Spectrum Matching (PSM): The Core of Proteomics Database Search Algorithms

Why Peptide-Spectrum Matching Matters in Mass Spectrometry Proteomics

In mass spectrometry-based shotgun proteomics, proteins are enzymatically digested into peptides and analyzed to generate large numbers of tandem mass spectra (MS/MS spectra). Each MS/MS spectrum captures fragment ion peaks produced when a peptide breaks apart inside the instrument, and it effectively serves as an experimental “fingerprint” for that peptide [1]. Turning these fingerprints into confident peptide and protein identifications is the central computational challenge of shotgun proteomics, and peptide-spectrum matching (PSM) is the key step that makes it possible.

At its core, a PSM algorithm compares an experimental MS/MS spectrum to theoretical spectra derived from candidate peptide sequences in a database and assigns a match score. That single score has far-reaching consequences: it determines which peptides are accepted as true identifications, which proteins are reported as present, and how credible downstream biological interpretations will be. Because modern experiments may generate tens of thousands to millions of spectra, PSM must be both accurate and scalable. In practice, robust PSM is the foundation supporting protein identification, quantitative proteomics, and many PTM studies, and it is also tightly linked to error-rate estimation strategies such as target-decoy searching and FDR control.

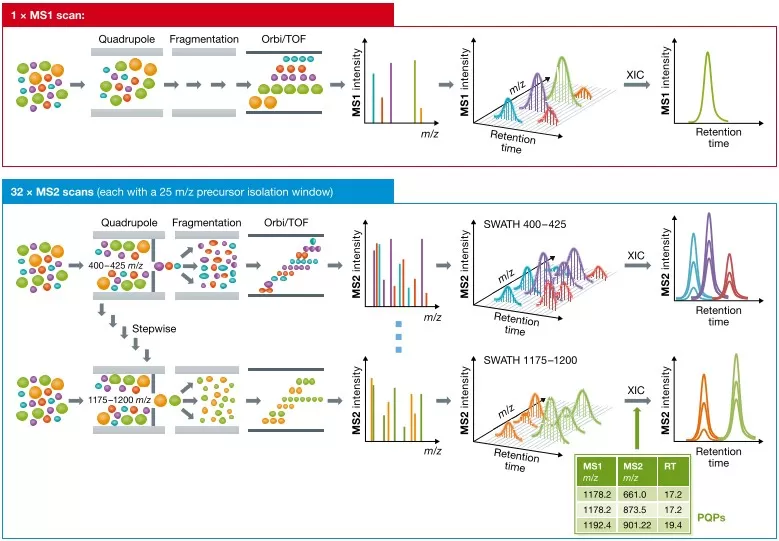

Figure 1 Mass spectrometry workflow for analyzing peptide precursor ions (MS1) and fragment ions (MS2) [1]

2. The Basic Framework of PSM Algorithms

A complete peptide-spectrum matching (PSM) workflow can be viewed as a stepwise pipeline that transforms raw MS/MS spectra into confident peptide identifications. In most proteomics database search engines, this pipeline proceeds through four core stages: (1) spectrum preprocessing to reduce noise and standardize peak information, (2) candidate peptide generation by defining the search space from the protein database and digestion/modification settings, (3) theoretical spectrum construction and PSM scoring by comparing experimental spectra against predicted fragment ions from each candidate, and (4) statistical validation and quality control, most commonly using target-decoy strategies to control the false discovery rate (FDR).

Step 1: Data Preprocessing

1) Denoising and peak selection: Remove chemical noise and electronic noise peaks, and select the top N peaks with the highest signal intensity (e.g., Top 200) for subsequent analysis to reduce computational complexity.

2) Peak normalization: Normalize peak intensities (e.g., set the most intense peak to 100%) to reduce the impact of experimental variation.

3) Charge state inference: For precursor ions (parent ions), determine the charge state based on isotopic distributions.

Step 2: Theoretical Spectrum Generation

1) Database definition: Choose the corresponding protein sequence database (e.g., UniProt) according to the species, and consider possible digestion specificity (e.g., trypsin), the number of missed cleavages, fixed/variable modifications, and the peptide mass range.

2) Theoretical fragmentation: For each candidate peptide in the database that meets the criteria, simulate its fragmentation behavior in the mass spectrometer to generate a theoretical spectrum. The two most abundant ion series are mainly considered:

a) b ions: retain the N-terminal fragment of the peptide.

b) y ions: retain the C-terminal fragment of the peptide.

At the same time, consider ion charge states (+1, +2) and neutral losses (such as H2O, NH3).

Step 3: PSM Scoring-Matching Experimental vs Theoretical Spectra

This is the computational heart of PSM. The search engine compares each experimental spectrum against the theoretical spectrum of each candidate peptide and computes a score representing match quality. While details vary across algorithms, most scoring functions reward matches where expected fragment m/z values align closely to observed peaks, penalize unexplained peaks or mass errors, and may incorporate evidence from peak intensity patterns and ion series continuity. Because a single spectrum can have many plausible candidates—especially in complex samples or with wide modification settings—effective scoring must separate true biochemical matches from coincidental alignments that occur by chance in noisy data.

Step 4: Result Validation and Quality Control

Even the best scoring function produces some incorrect matches, which is why modern proteomics relies on statistical validation.

1) False Discovery Rate (FDR) control: Estimate the proportion of incorrect matches by searching a decoy database (such as a reversed-sequence or random-sequence database), and use a target-decoy strategy to control the global FDR below a preset threshold (e.g., 1%).

2) Post-filtering: Further filter results based on features such as score, peptide length, charge state, and mass deviation.

3. Core Scoring Functions and Algorithm Families

Scoring functions sit at the core of peptide-spectrum matching (PSM) because they determine how convincingly an experimental MS/MS spectrum supports one candidate peptide over all others. Over the past decades, PSM scoring has evolved along three major algorithm families, reflecting the field’s shift from intuitive pattern matching to statistically grounded inference and, more recently, data-driven learning. Broadly, modern search engines can be grouped into (1) first-generation heuristic scoring, which emphasizes shared peak counts and simple similarity measures, (2) second-generation probabilistic scoring, which interprets matches through explicit statistical models and random-match probabilities, and (3) third-generation machine learning and deep learning scoring, which improves discrimination by learning from large-scale labeled PSM data and by predicting more realistic fragmentation patterns.

3.1 The 1st Generation: Heuristic Scoring Based on Shared Peak Counts

The core idea of heuristic scoring is to calculate the number of matched peaks or the sum of intensities between the experimental spectrum and the theoretical spectrum. A representative algorithm is SEQUEST. The SEQUEST algorithm was first formally published in 1994 by Jimmy K. Eng, Ashley L. McCormack, and John R. Yates III [2]. Its main workflow includes:

1) Generate candidate peptides by in silico enzymatic digestion of a protein database.

2) Predict a simplified CID theoretical spectrum for each candidate peptide (y-ion intensity = 2× b-ion intensity).

3) Compare and score experimental MS/MS against the theoretical spectrum using cross-correlation. Specifically, treat the experimental spectrum and theoretical spectrum as vectors and calculate their cross-correlation function. By slightly shifting the m/z axis of the theoretical spectrum to find the best matching position, it can effectively tolerate small mass deviations. The final score is the height of the main peak of the cross-correlation function.

4) Use a target-decoy idea (ΔCn > 0.1) to filter results, enabling a fully automated peptide identification workflow.

The characteristics of this type of algorithm are intuitive and efficient, but it lacks rigorous statistical meaning and relies on empirical thresholds.

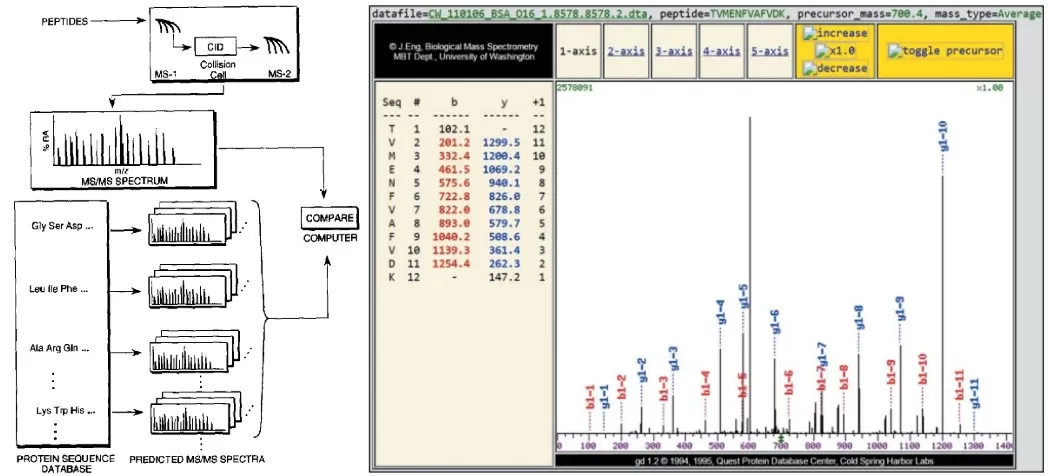

Figure 2 (a) Workflow diagram of the SEQUEST algorithm for searching protein databases using tandem mass spectrometry data [2]; (b) a representative bovine serum albumin (BSA) peptide identified by SEQUEST, where the annotated MS2 spectrum shows the matched ion series.

3.2 The 2nd Generation: Probabilistic Model–Based PSM Scoring

The core idea of second-generation PSM algorithms is to evaluate the probability that an experimental spectrum is generated by a candidate peptide, or the probability of obtaining the current score by random matching. Representative algorithms include Mascot [3], X!Tandem [4], Andromeda [5], and others. The characteristics of this class of algorithms are that the scores have statistical interpretability and facilitate global error-rate control.

• Mascot (probability scoring): Uses a moving-window strategy to calculate the probability, under a given database background, that the observed number of matched peaks is caused by random events (i.e., the ion score). The final score is -10*lg(P); the smaller the P value, the higher the score.
• X!Tandem (hypergeometric distribution scoring): Models the matching process as a sampling problem from all possible theoretical peaks, and uses the hypergeometric distribution to calculate the probability that the observed number of matches occurs by chance.
• Andromeda (integrated in MaxQuant): Based on a Bayesian probabilistic framework, simultaneously considers the number, intensity, continuity, and mass deviation of matched peaks to calculate the posterior probability.

3.3 The 3rd Generation: Machine Learning and Deep Learning for PSM Scoring

The core idea of third-generation PSM algorithms is to use a large number of identified spectrum–peptide pairs as training data, enabling the model to learn complex matching patterns and automatically extract key features. Representative methods include:

• Machine learning: For example, Percolator, as a post-processing tool, uses an SVM to rescore and rerank original PSM results (such as SEQUEST XCorr, mass deviation, peak intensity distribution, and dozens of other features), significantly improving identification rates [6].
• Deep learning:

(1) Spectrum prediction models: such as Prosit [7], pDeep [8], etc. They can accurately predict a peptide’s theoretical spectrum under specific instrument conditions (including peak intensities and ion types) based on the peptide sequence, generating a more realistic “theoretical spectrum” than simple rules. Then, metrics such as Spectral Angle are used to compare the experimental spectrum and the predicted spectrum.

(2) End-to-end matching models: directly learn a mapping from “experimental spectrum + candidate sequence” to a “matching score,” such as DeepMatch [9].

Such algorithms greatly improve the fidelity of spectrum prediction and the accuracy of matching, and they provide significant improvements especially for difficult-to-identify spectra (e.g., modified or low-abundance peptides).

4. The Future of Proteomics Database Search

Peptide-spectrum matching algorithms have undergone more than two decades of development, evolving from simple peak counting into complex systems that integrate probabilistic statistics, machine learning, and high-performance computing. Future trends include:

i. Deeper integration of deep learning: Prediction models will become more accurate and more general, covering a wider range of instruments, fragmentation methods, and modification types.

ii. Real-time search and intelligent acquisition: PSM algorithms will be integrated with mass spectrometer control software to enable real-time identification and guide the acquisition strategy for the next spectrum (e.g., from DDA to DIA-PASEF).

iii. Integration of multi-dimensional information: In addition to spectral peak information, orthogonal information such as retention time and ion mobility will be incorporated to build stronger discriminative models.

iv. Open source and reproducibility: The adoption of open-source algorithms (such as Comet, MSFragger) and standardized data formats (such as mzML, mzIdentML) will promote transparency, comparability, and reproducibility.

In short, as the engine of proteomics data interpretation, peptide-spectrum matching continues to innovate at the algorithmic level, which is a core driving force pushing the entire field toward deeper coverage, higher accuracy, and faster throughput. Understanding how it works is crucial for proteomics researchers to select appropriate tools, interpret results correctly, and even develop new methods.

Reference

[1] Ludwig C, Gillet L, Rosenberger G, Amon S, Collins BC, Aebersold R. Data-independent acquisition-based SWATH-MS for quantitative proteomics: a tutorial. Mol Syst Biol. 2018 Aug 13;14(8):e8126. doi: 10.15252/msb.20178126. PMID: 30104418; PMCID: PMC6088389.

[2] Eng JK, McCormack AL, Yates JR. An approach to correlate tandem mass spectral data of peptides with amino acid sequences in a protein database. J Am Soc Mass Spectrom. 1994 Nov;5(11):976-89. doi: 10.1016/1044-0305(94)80016-2. PMID: 24226387.

[3] Perkins DN, Pappin DJ, Creasy DM, Cottrell JS. Probability-based protein identification by searching sequence databases using mass spectrometry data. Electrophoresis. 1999 Dec;20(18):3551-67. doi: 10.1002/(SICI)1522-2683(19991201)20:18<3551::AID-ELPS3551>3.0.CO;2-2. PMID: 10612281.

[4] Craig R, Beavis RC. TANDEM: matching proteins with tandem mass spectra. Bioinformatics. 2004 Jun 12;20(9):1466-7. doi: 10.1093/bioinformatics/bth092. Epub 2004 Feb 19. PMID: 14976030.

[5] Cox J, Neuhauser N, Michalski A, Scheltema RA, Olsen JV, Mann M. Andromeda: a peptide search engine integrated into the MaxQuant environment. J Proteome Res. 2011 Apr 1;10(4):1794-805. doi: 10.1021/pr101065j. Epub 2011 Feb 22. PMID: 21254760.

[6] Käll L, Canterbury JD, Weston J, Noble WS, MacCoss MJ. Semi-supervised learning for peptide identification from shotgun proteomics datasets. Nat Methods. 2007 Nov;4(11):923-5. doi: 10.1038/nmeth1113. Epub 2007 Oct 21. PMID: 17952086.

[7] Gessulat S, Schmidt T, Zolg DP, Samaras P, Schnatbaum K, Zerweck J, Knaute T, Rechenberger J, Delanghe B, Huhmer A, Reimer U, Ehrlich HC, Aiche S, Kuster B, Wilhelm M. Prosit: proteome-wide prediction of peptide tandem mass spectra by deep learning. Nat Methods. 2019 Jun;16(6):509-518. doi: 10.1038/s41592-019-0426-7. Epub 2019 May 27. PMID: 31133760.

[8] Zhou XX, Zeng WF, Chi H, Luo C, Liu C, Zhan J, He SM, Zhang Z. pDeep: Predicting MS/MS Spectra of Peptides with Deep Learning. Anal Chem. 2017 Dec 5;89(23):12690-12697. doi: 10.1021/acs.analchem.7b02566. Epub 2017 Nov 21. PMID: 29125736.

[9] Peng H, Wang H, Kong W, Li J, Goh WWB. Optimizing differential expression analysis for proteomics data via high-performing rules and ensemble inference. Nat Commun. 2024 May 9;15(1):3922. doi: 10.1038/s41467-024-47899-w. PMID: 38724498; PMCID: PMC11082229.
