LC-MS Made Practical: Principles, Platforms, and a Reproducible Workflow

Liquid chromatography–mass spectrometry (LC-MS) couples separation with m/z-based detection to identify and quantify analytes in complex matrices. Choose triple quadrupole (QQQ) for rigorous quantitation and high-resolution MS (HRMS; Q-TOF/Orbitrap) for unknown screening/structure elucidation. Follow the 5-step workflow and QA checkpoints below to reduce matrix effects and hit your LoQ.

How LC-MS Works

1. Sample in, interferences out. LC separates analytes by polarity/retention.
2. Ionize. ESI or APCI transfers molecules into gas-phase ions.
3. Filter/measure ions. The MS selects or measures ions by mass-to-charge (m/z).
4. Fragment (if needed). Tandem MS (MS/MS) generates diagnostic fragments.
5. Identify & quantify. Match retention time/ion ratios and integrate peaks against standards or libraries.

If your primary goal is precise, low-level quantitation in complex matrices, start with QQQ (MRM/SRM). If you need discovery, unknowns, or structural confidence, start with HRMS (Q-TOF/Orbitrap)—then lock down targets with a QQQ method.

When to Choose QQQ vs HRMS (Use-Case Decision Matrix)

What about LC-MS vs GC-MS? For volatile/thermally stable compounds, GC-MS shines; for polar, thermally labile metabolites, peptides, lipids, and most xenobiotics, LC-MS is preferred. See our detailed comparison here: LC-MS vs GC-MS: What’s the Difference?

Types of LC–MS Platforms (High- vs Low-Resolution)

LC–MS instruments differ in resolving power, mass accuracy, duty cycle, and therefore in the analytical problems they solve. A simple way to navigate the landscape is to group them into low-resolution and high-resolution platforms and then map each to typical acquisition modes.

Low-Resolution Systems

Single Quadrupole (LC–SQ/MS)

• What it is: A single mass filter measuring precursor ions only.
• Best for: Rapid screening, molecular weight confirmation, and simple assays where interferences are limited.
• Strengths: Affordable, easy to operate, high uptime.
• Limitations: Low selectivity (no MS/MS fragments), making it less suitable for trace-level quantitation in complex matrices.

Triple Quadrupole (LC–MS/MS, QQQ)

• What it is: Two mass filters with a collision cell for tandem MS.
• Best for: Targeted quantitation (MRM/SRM) at low ng–pg levels across diverse matrices; regulatory-style validation.
• Strengths: Gold standard for sensitivity and selectivity in predefined targets; fast cycle times for large panels.
• Limitations: Not designed for broad unknown discovery beyond the target list.

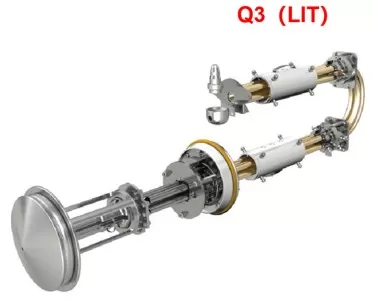

Triple Quadrupole (QQQ) with Linear Ion Trap

High-Resolution Systems

Time-of-Flight (LC–TOF/MS)

• What it is: Measures exact mass with high acquisition speed.
• Best for: Unknown screening, elemental composition, isotope pattern analysis.
• Strengths: High mass accuracy with rapid full-scan acquisition.
• Limitations: Data size/complexity; often paired with libraries or in-silico tools for IDs.

Quadrupole-Time-of-Flight (LC–Q-TOF/MS)

• What it is: Quadrupole precursor selection + TOF detection for HRMS-MS/MS.
• Best for: Structural elucidation and suspect/non-target workflows using DDA/DIA.
• Strengths: Confident formula/fragment evidence; flexible discovery methods.
• Limitations: Method setup and data processing require expertise.

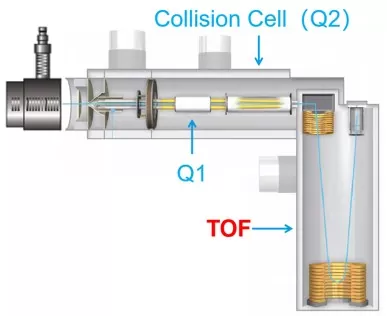

Quadrupole Time-of-Flight (Q-TOF) LC–MS

Orbitrap (LC–Orbitrap/MS)

• What it is: High resolving power and mass accuracy via Orbitrap analyzer.
• Best for: Metabolomics profiling, lipidomics, and proteomics (DIA/PRM) where high mass accuracy improves IDs and quant consistency.
• Strengths: Very high resolution; PRM enables targeted confirmation on HRMS.
• Limitations: Larger datasets and compute demand; throughput depends on method design.

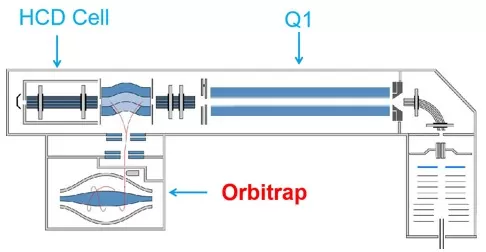

Quadrupole–Orbitrap (Orbitrap) LC–MS

A Standard LC-MS Workflow You Can Replicate (with QA Checkpoints)

Aim: Minimize matrix effects, improve identification confidence, and achieve reproducible quantitation.

1. Sample Preparation

Choose protein precipitation, liquid–liquid extraction, or SPE based on matrix and analyte polarity.

QA checkpoint: Include procedural blanks, matrix-matched calibration, and at least one stable-isotope internal standard (per class if possible).

2. LC Method

Column: C18 (reversed phase) for broad hydrophobics; HILIC for very polar metabolites.

Optimize gradient, flow, and column temperature for peak shape and separation.

QA checkpoint: Monitor retention time (RT) drift with QC samples; set acceptable RT windows.

3. Ion Source & Polarity

ESI for peptides, lipids, polar metabolites; APCI for less polar/thermally labile analytes.

Evaluate positive vs negative polarity; consider polarity switching where appropriate.

QA checkpoint: Track internal standard response stability (e.g., ±20%) across injections.

4. MS Acquisition

Targeted: QQQ in MRM/SRM for specific precursors/products; optimize collision energy and dwell time.

Discovery: HRMS in DDA (top-N) for spectral libraries or DIA for comprehensive coverage.

QA checkpoint: Use system suitability (tuning mix), check mass accuracy (ppm), and isotopic fidelity.

5. Data Processing & QC

Peak detection/integration with consistent boundaries; apply smoothing judiciously.

Calibration: External or internal; validate linearity (R²), carryover, recovery, matrix factor.

QA checkpoint: Insert pooled QC every 10–20 samples; evaluate CV% of targets; perform batch correction only when justified.

Method Robustness: Matrix Effects, Calibration, and LoQ You Can Trust

Matrix Effects (ME): Ion suppression/enhancement from co-eluting species.

• Mitigate with: cleaner prep (SPE), orthogonal separation (HILIC vs RP), stable-isotope internal standards, and post-column infusion to visualize suppression regions.

Calibration Strategy:

• Prefer matrix-matched curves when feasible; if not, justify solvent-based calibration with recovery checks.
• Use weighted regression (1/x or 1/x²) for wide dynamic ranges.

Validation Essentials:

• Selectivity/specificity, linearity, LoD/LoQ, accuracy, precision, recovery, stability (freeze–thaw, bench-top), and carryover.
• Pre-define acceptance criteria (e.g., accuracy and precision within a reasonable % for your domain).

System Suitability:

Daily source/tune check, mass accuracy within set ppm tolerance, RT stability, and IS response trend charts.

LC-MS Applications in Metabolomics, Proteomics, Clinical and Environmental

Metabolomics

Discovery: HRMS with DDA/DIA for comprehensive coverage; leverage curated libraries and in-silico fragmentation.

Targeted validation: Transfer prioritized features to QQQ MRM panels for precise quantitation in large cohorts.

Common pitfalls: Over-reliance on putative IDs without orthogonal confirmation; ignoring batch effects.

Proteomics (Bottom-up)

Quantitative discovery: DIA on HRMS for reproducible coverage across samples.

Targeted verification: PRM on HRMS or MRM on QQQ for biomarkers/assays.

Key controls: Digestion efficiency surrogates, peptide uniqueness, spectral library quality, and iRT calibration.

Clinical & Translational

Use cases: Therapeutic drug monitoring, steroid panels, bile acids, acylcarnitines, small-molecule biomarkers.

Approach: QQQ MRM with isotope-dilution for rigorous quant; document stability and inter-day reproducibility.

Environmental & Food Safety

Use cases: Pesticides, PFAS, mycotoxins, process contaminants.

Approach: Start with HRMS suspect screening; confirm and quantify with QQQ MRM; include surrogate spikes and matrix blanks.

From Discovery to Validation: An End-to-End Omics Workflow

1. Explore broadly with HRMS (untargeted metabolomics/lipidomics or DIA proteomics) to generate a confident candidate list.

2. Select targets using effect size, pathway context, and MS/MS evidence.

3. Lock down quant by converting to QQQ MRM (or PRM where appropriate) for larger cohorts and decision-grade precision.

4. Report clearly with RT windows, transitions/fragment ions, linear range, QC CV%, and caveats needed for downstream interpretation.

Our team supports widely-targeted metabolomics for broad feature coverage and targeted LC–MS/MS panels for verification, plus DIA-based proteomics options. We provide clear reports and responsive consultation so you can move from signals to decisions efficiently.

FAQs

Q1. What is the difference between LC-MS and LC-MS/MS?

A. LC-MS is a single-stage mass analysis after chromatographic separation. LC-MS/MS (tandem MS) introduces fragmentation and a second mass analysis, boosting selectivity and confidence for quantitation/identification via characteristic product ions.

Q2. When should I choose a triple quadrupole over HRMS for quantitation?

A. Pick QQQ (MRM/SRM) when your priority is trace-level accuracy, ruggedness, and regulatory-style validation across many samples and matrices. Use HRMS if discovery/unknowns are primary; then confirm with QQQ.

Q3. How do I reduce matrix effects in LC-MS?

A. Use matrix-matched calibration and stable-isotope internal standards, optimize chromatography (alternative column or HILIC vs RP), improve cleanup (SPE), and assess suppression via post-column infusion or IS trend monitoring.

Q4. DDA, DIA, and MRM—how do they differ and where to use them?

A. MRM (QQQ) targets predefined ions for precise quant. DDA (HRMS) collects MS/MS for the most intense ions to build spectral evidence. DIA (HRMS) fragments all ions across windows for comprehensive, reproducible coverage—excellent for discovery proteomics and metabolomics surveys. Learn more at DDA vs. DIA vs. MRM vs. PRM

Q5. Do I need APCI instead of ESI?

A. ESI suits most polar/ionizable analytes (peptides, many metabolites/lipids). APCI can outperform ESI for less polar, thermally labile molecules and in high-organic flows. Test both when ionization efficiency is poor. Learn more at Top 6 Ion Sources in Mass Spectrometry: EI, CI, ESI, APCI, APPI, and MALDI
